Introduction

In the world of RF and microwave design, material selection is arguably the most critical decision an engineer can make. For applications demanding specific dielectric constants, exceptional stability, and reliability in harsh environments, standard FR-4 materials simply won't suffice. This case study examines a custom PCB built on Wangling TP440 material, a unique high-frequency thermoplastic with a dielectric constant (Dk) of 4.4, designed for demanding antenna applications. This board illustrates the capabilities of the TP series, particularly its ability to enable circuit miniaturization without sacrificing performance.

Project Overview & Technical Specifications

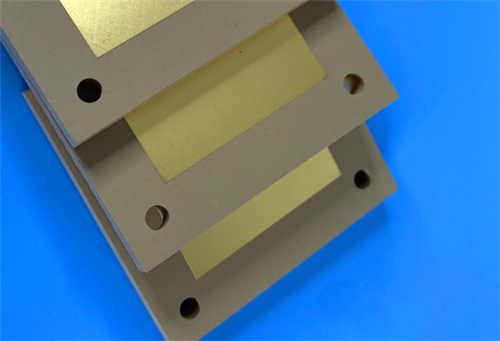

This project involved the design of a compact, 2-layer rigid PCB measuring 67.5mm x 58.6mm. The board is characterized by its minimalist design, featuring only 11 components, 19 pads, and a single net, underscoring the highly specialized nature of its function. The design's simplicity is a testament to the efficiency of the chosen material; the inherent properties of the TP440 core allow for a straightforward, yet high-performance circuit.

The full construction details are as follows:

• Base Material: Wangling TP440 (a ceramic-filled Polyphenylene Oxide resin composite) .
• Layer Count: 2-layer rigid PCB.
• Board Dimensions: 67.5mm x 58.6mm, +/- 0.15mm.
• Minimum Trace/Space: 6/8 mils.
• Minimum Hole Size: 0.3mm.
• Blind Vias: No.
• Finished Board Thickness: 0.6mm.
• Finished Cu Weight: 1oz (35 μm) outer layers .
• Via Plating Thickness: 20 μm.
• Surface Finish: Immersion Gold (ENIG).
• Silkscreen & Solder Mask: None.
• Quality Standard: IPC-Class-2.
• 100% Electrical Test: Used prior to shipment .

The Core Material: Wangling TP440

The PCB's performance hinges on its core material, Wangling TP440. This material is part of a unique series of high-frequency thermoplastics that set it apart from conventional PCB substrates. Unlike standard materials reinforced with fiberglass, TP440's dielectric layer is composed of a precise blend of ceramics and PPO resin .

The defining feature of the Wangling TP series is its tunable dielectric constant (Dk) . By adjusting the ratio of ceramic to PPO resin, the Dk can be customized within a range of 3 to 25 . The TP440 variant is specified to have a Dk of 4.4 ± 0.09 and a low dissipation factor (Df) of 0.0010 at 10 GHz, ensuring minimal signal loss at high frequencies . This precise, stable Dk and ultra-low loss are crucial for applications where signal integrity is paramount .

Key Advantages for Demanding Applications

The choice of TP440 material for this PCB was driven by several key requirements typical of advanced antenna systems:

Miniaturization: For a given frequency, the physical size of a circuit element like a patch antenna is inversely proportional to the square root of the dielectric constant . A higher Dk allows for a significantly smaller antenna design. The TP440's Dk of 4.4 enables a more compact form factor compared to standard materials (like FR-4 with a Dk of ~4.3-4.5) while maintaining superior high-frequency performance.

High-Frequency Stability: The TP material maintains its low dielectric loss across a wide frequency range, up to and beyond 10 GHz. This stability is essential for consistent performance in applications like GPS, satellite communications, and other RF systems .

Environmental Resilience: The board is designed for reliability in extreme environments. The TP440 material boasts a long-term operating range from -100°C to +150°C, making it suitable for aerospace, military, and other outdoor applications. It is also resistant to radiation and exhibits low outgassing, a critical property for vacuum environments .

Superior Machinability: While offering performance comparable to, or better than, fragile ceramic substrates, TP material is much easier to machine. It can be processed using standard methods like drilling, etching, and shearing, avoiding the costly and complex handling required for ceramics .

Design for Manufacturing (DFM) and Reliability

This PCB was fabricated with stringent quality control measures. The manufacturing process adhered to the IPC-Class-2 standard, ensuring high reliability in commercial and industrial environments. The decision to omit solder masks and silkscreens is likely to prevent any disruption to the high-frequency signal path or for size constraints, a common practice in minimalist RF designs. The use of Immersion Gold (ENIG) surface finish provides a flat, solderable surface with excellent corrosion resistance and low contact resistance, ideal for RF applications. To guarantee functionality, the board underwent a 100% electrical test before shipment .

Conclusion

This custom PCB design is a prime example of how leveraging advanced materials like Wangling TP440 enables engineers to push the boundaries of high-frequency circuit design. By utilizing a material with a stable, low-loss dielectric constant and extreme environmental resilience, this compact PCB is primed for use in critical applications such as GPS antennas, Beidou navigation systems, missile-borne electronics, and miniaturized antennas . The success of this project highlights the importance of selecting the right substrate to meet the unique challenges of RF and microwave engineering.
