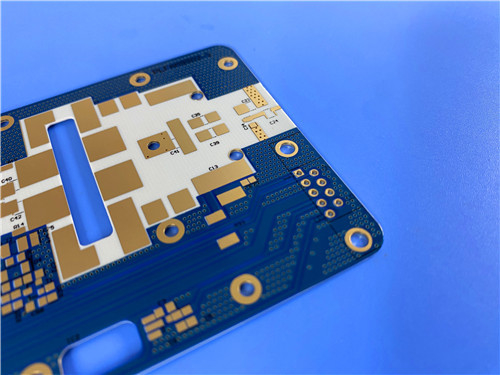

RF-60A 2-Layer PCB with 0.7mm Thickness and Blue Solder Mask by Bicheng Technologies Limited

RF-60A 2-Layer PCB with 0.7mm Thickness: A High-Performance Solution for RF and Microwave Applications by Bicheng Technologies Limited

(All PCBs are custom-manufactured. Reference images and parameters may vary based on your design requirements.)

At Bicheng Technologies Limited, we are excited to offer the RF-60A 2-Layer PCB, a high-performance solution crafted for RF and microwave applications. Built with Taconic's RF-60A laminate, this PCB provides exceptional interlaminar bond strength, low dielectric loss, and uniform electrical properties, making it ideal for power amplifiers, filters, couplers, and miniaturized antennas.

This 0.7mm thick PCB features 1oz copper weight, a blue solder mask, and immersion gold surface finish for enhanced durability and optimal performance. Here, we’ll explore the construction, features, and applications of this cutting-edge PCB in detail.

1. Overview of the RF-60A 2-Layer PCB

The RF-60A 2-Layer PCB is designed for high-frequency applications that demand low signal loss, dimensional stability, and exceptional thermal reliability. RF-60A, part of Taconic’s ORCER family, is a woven glass-reinforced organic-ceramic laminate that combines low moisture absorption with outstanding electrical performance.

With its stable dielectric constant (Dk) and low dissipation factor (Df), this PCB ensures precise and reliable performance, even in high-frequency circuits. At Bicheng Technologies Limited, we manufacture all PCBs to IPC-Class-2 standards and conduct 100% electrical testing to guarantee superior quality and consistency.

PCB Construction Details

The 2-layer stackup, with RF-60A laminate, ensures low signal loss, thermal stability, and mechanical reliability, making it suitable for a variety of RF and microwave applications.

2. Features and Benefits of RF-60A Material

The RF-60A laminate, manufactured by Taconic, is a premium material for high-frequency circuits, offering low moisture absorption, excellent interlaminar bond strength, and stable electrical properties over a wide frequency range.

Key Features of RF-60A:

• Dielectric Constant (Dk): 6.15 at 10GHz, ensuring consistent signal propagation and minimal phase shift.
• Dissipation Factor (Df): 0.0038 at 10GHz, reducing signal distortion and enhancing circuit efficiency.
• Thermal Properties: Thermal Conductivity: 0.4W/MK, enabling efficient heat dissipation in high-power circuits.
• CTE (Coefficient of Thermal Expansion):
  • X-axis: 9 ppm/°C
  • Y-axis: 8 ppm/°C
  • Z-axis: 69 ppm/°C, ensuring dimensional stability and through-hole reliability.
• Moisture Resistance: Ultra-low moisture absorption of 0.02%, ensuring stable performance in humid environments.
• Outgassing:
  • Total Mass Loss (TML): 0.02%
  • Water Vapor Regain (WVR): 0.01%, making it suitable for aerospace applications.

Key Benefits of RF-60A:

1. RoHS and WEEE Compliant: Meets global environmental standards for green manufacturing.
2. Exceptional Interlaminar Bonds: Strong adhesion between layers ensures durability and reliability.
3. Low Dielectric Loss: Reduces energy loss, enabling high efficiency in RF circuits.
4. Enhanced Dimensional Stability: Woven glass reinforcement ensures precision in high-frequency designs.
5. Low Z-Axis Expansion: Improves plated-through-hole reliability in extreme thermal environments.
6. Stable Dk Over Frequency: Ensures consistent performance across a wide range of frequencies.

3. Applications of the RF-60A 2-Layer PCB

The RF-60A 2-Layer PCB is ideal for high-frequency circuits and RF systems that demand precision, stability, and reliability. Its unique material properties make it suitable for a variety of applications.

Typical Applications:

Power Amplifiers

Filters and Couplers

Miniaturized Antennas

Passive Components

4. Why Choose Bicheng Technologies Limited?

At Bicheng Technologies Limited, we are committed to delivering innovative PCB solutions tailored to meet the needs of high-performance RF and microwave applications. The RF-60A 2-Layer PCB exemplifies our dedication to precision, quality, and customer satisfaction.

Why Partner with Us?

1. Expertise in RF and Microwave PCBs: We specialize in PCBs for high-frequency applications, ensuring superior performance and reliability.
2. Stringent Quality Standards: All PCBs are manufactured to IPC-Class-2 standards and undergo 100% electrical testing.
3. Global Availability: We deliver worldwide, ensuring timely support for your projects.
4. Customer-Centric Approach: Our team provides tailored solutions to meet your specific requirements.

For details inquiries or assistance, feel free to contact me, Sally, at sales30@bichengpcb.com. I am happy to help you find the perfect PCB solution for your application.
